| Identifer | Preview | Title | Surveyor | Date | Media / Size / Scale | Area / Map Features |
| RC-010-b |
|
Plan and profile showing the extension of the Union Passenger Railway along Market St. from Ninth St. to Front St. [Survey returned and approved May 5, 1873] | Shedaker, David Hudson | 1873 |
Tracing
12 x 51 in.
1 inch = 80 feet
|
Union Passenger Railway
Street Railway. Includes full size cross section of rail
|
| RC-010-f |
|
Plan and profile of the extension of the Union Passenger Railway, on Master and Twenty-seventh Sts. [Acts of Assembly April 5, 1870 and Nov. 22, 1873; ordinance April 7, 1880; survey returned Feb. 17, 1882; plan filed March 8, 1882] by Board of Surveyors May 6, 1889] | Albertson, William | 1882 |
Mounted
22 x 26 in.
|
Union Passenger Railway
Street Railway
|
| RC-010-g |
|
Plan and profile of the extension of the Union Passenger Railway on Franklin St. and Susquehanna Ave. [Survey returned Feb. 23, 1882; approved by Board of Surveyors April 17, 1882] | Albertson, William | 1882 |
Mounted
14 x 36 in.
|
Union Passenger Railway
Street Railway
|
| RC-010-h |
|
Plan of a section of track belonging to the Union Passenger Railway Co. [Approved by Board of Surveyors April 17, 1882] | Mercer, Joseph | 1882 |
Mounted
10 x 53 in.
|
Street railway tracks on Susquehanna Ave. between Germantown Ave. and Howard St.
Street Railway
|
| RC-010-i-1 |
|
[No title. Passenger railway track alignment at intersection of 9th and Spring Garden Sts., approved by Board of Surveyors April 4, 1892, with attached letter from D. H. Dickson, Treasurer, PTC, to W. W. Thayer, Surveyor 4th District, dated March 31, 1892] | Not named | 1892 |
Blueprint
9 x 7 in.
|
Street railway tracks at 9th and Spring Garden Sts.
Street Railway. Attachment: Letter
|
| RC-010-i-2 |
|
Phila. Traction Co.., Phila. Pa. Car tracks to and from Hancock and Lehigh Ave. | Not named | 1886 |
Blueprint
22 x 19 in.
1 inch = 32 feet
|
Philadelphia Traction Co.
Street Railway. Shows car shed and stable
|
| RC-010-J |
|
Plan [and profile] of proposed extension of the tracks of the Union Passenger R'y. Co. [Ordinance Dec. 31, 1888; approved Jan. 21, 1889] | Roberts, Edward D. | 1889 |
Mounted
14 x 28 in.
1 Inch = 40 feet
|
Union Passenger Railway, Poplar St. from Pennsylvania Ave. to 29th St.
Street Railway
|
| RC-010-m |
|
Plan of the tracks of the Union Passenger Railway, on 29th Street, between Poplar and Jefferson St. and on Master & Jefferson from 27 to 29 St. [Ordinance May 4, 1889; approved May 5, 1889] | Not named | 1889 |
Blueprint
15 x 35 in.
|
Union Passenger Railway
Street Railway
|
| RC-010-n |
|
Plan and profile of the proposed extension of the Union Passenger Railway Co. of Philadelphia, in the 26th and 30th Wards, Philada. [Approved by Board of Surveyors July 1, 1889] | Cranmer, William C. | 1889 |
Blueprint
27 x 59 in.
1 inch = 100 feet
|
Union Passenger Railway
Street Railway
|

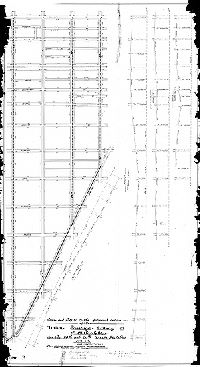

| RC-010-o |
|
Plan and profile of the proposed extension of the Union Passenger Railway Co. of Philadelphia, in the 26th and 30th Wards, Philada. [Approved by Board of Surveyors July 1, 1889] | Cranmer, William C. | 1889 |
Blueprint
59 x 33 in.
1 inch = 100 feet
|
Union Passenger Railway
Street Railway
|
| RC-010-p1 |
|
Plan and profile of proposed extension of Union Pass. R.W. Co.'s track on Wharton St. from Point Breeze Ave. to 22nd St. [Ordinance July 15, 1890; approved Aug. 4, 1890] | Cranmer, William C. | 1890 |
Blueprint
9 x 21 in.
1 inch = 40 feet
|
Union Passenger Railway
Street Railway
|
| RC-010-p2 |
|
Plan and profile of proposed extension of Union Pass. R.W. Co.'s double tracks on Point Breeze Ave. from 20th St. to 22nd St. [Ordinance July 15, 1890; approved Aug. 4, 1890] | Cranmer, William C. | 1890 |
Blueprint
9 x 35 in.
1 inch = 40 feet
|
Union Passenger Railway
Street Railway
|
| RC-010-q |
|
Plan showing proposed connection of present tracks of the Union Passenger Railway Co. … [and] of Phila. & Grays-Ferry Passenger Railway Co. Curves at [various locations, and] tracks on [various streets] [Approved Feb. 2, 1891] | Cranmer, William C.; Daly, Thomas | 1891 |
Blueprint
17 x 33 in.
1 inch = 100 feet
|
Union Passenger Railway
Street Railway
|
| RC-010-r |
|
Plan of proposed location of tracks on Sp. [Spring] Garden and Kessler Sts., Thirteenth Ward, Philadelphia [Approved April 4, 1892] | Thayer, W. W. | 1892 |
Mounted
32 x 38 in.
|
Street railway, tracks on Spring Garden and Kessler Sts.
Street Railway
|
| RC-011-a |
|
Plan of the Peoples Passenger Railway, through the Third and Fifth Survey Districts. May 1873. [Approved by Board of Surveyors June 16, 1873] | Shedaker, David Hudson | 1873 |
Mounted
16 x 55 in.
|
Peoples Passenger Railway Co., Dock St. to Callowhill St.
Street Railway
|
| RC-011-b |
|
Plan of the Peoples Passenger Railway, through the Third and Fifth Survey Districts. May 1873. [Approved by Board of Surveyors June 16, 1873] | Shedaker, David Hudson | 1873 |
Mounted
17 x 34 in.
|
Peoples Passenger Railway Co.,Front to Sixth Sts., Vine to Callowhill Sts.
Street Railway
|
| RC-011-d |
|
Plan of the extension of the Peoples Passenger Railway, Twenty-fourth Street, Callowhill to Green Streets, Philadelphia. [No approval date] | Not named | 1873 ca. |
Mounted
15 x 37 in.
|
24th St., Callowhill to Green Sts.
Street Railway
|

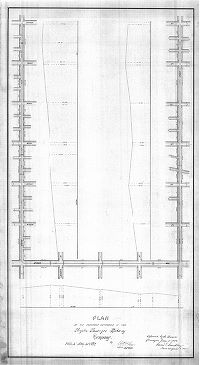

| RC-011-e |
|
Plan of the proposed extension of the Peoples Passenger Railway Company. Phila. May 31, 1882. [Approved by Board of Surveyors June 5, 1882] | Close, Charles W. | 1882 |
Mounted
42 x 23 in.
|
Street railway tracks from 4th St. at Dickinson St. to Snyder Ave. to 8th St. back to Dickinson St.
Street Railway
|

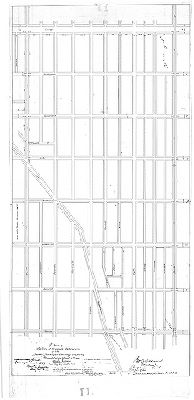

| RC-011-f |
|
Plan of section of proposed extension of Peoples Passenger Railway Company, Philadelphia, April 12th, 1887. [Approved by Board of Surveyors June 20, 1887] | Mercer, Joseph | 1887 |
Tracing
53 x 24 in.
|
Street railway Street railway tracks in 8th St. and in 4th St. between Norris St. and Lehigh Ave.
Street Railway
|

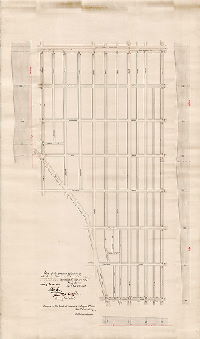

| RC-011-g |
|
Plan of the proposed extension of the Peoples Passenger Railway Company. Philadelphia, Sept. 14, 1889 [Approved by Board of Surveyors Sept. 16, 1889] | Mercer, Joseph | 1889 |
Mounted
54 x 32 in.
|
Bounded by Germantown Ave., 8th St., Lehigh Ave., 4th St. and Norris St.
Street Railway
|
| RC-011-h |
|
Plan of proposed curve at Fourth and Callowhill Sts. for Peoples Passenger R'y. Co. | Cranmer, William C. | 1889 |
Blueprint
7 x 18 in.
1 inch = 20 feet
|
People's Passenger Railway Co.
Street Railway
|
| RC-011-h attachment |
|
Wm. Wharton Jr. & Co. Incorporated, Philadelphia, PA. Drawing of curve at 4th and Callowhill Sts. For Peoples Pass. Railway Company, Philadelphia, PA. April 11, 1889 | Not named | 1889 |
Blueprint
15 x 17 in.
|
Street railway, curve, 4th and Callowhill
Street Railway
|
| RC-011-i |
|
Map showing proposed extension of the tracks of the Peoples Passenger Railway on the line of Twenty-second and York Sts, Sedgley and Susquehanna Aves. 28th Ward Philadelphia. Nov. 1889. | Fuller, H. M. | 1889 |
Tracing
16 x 58 in.
|
People's Passenger Railway Co.
Street Railway
|
| RC-011-j |
|
Plan & profile for the proposed location of tracks for the Northern Passenger Railway Co. as authorized by ordinance of Councils app. Feb. 25th, 1891. Thirty-third Ward, Phila. [Survey returned March 23, 1891; approved by Board of Surveyors April 6, 1891] | Webster, George S. | 1891 |
Mounted
29 x 29 in.
1 inch = 100 feet
|
Northern Passenger Railway Co. 8th to Fairhill Sts., Lehigh Ave. to Indiana St.
Street Railway
|
| RC-011-k |
|
Plan & profile of a section of track belonging to the Northern Passenger Railway Company [Ordinance Feb. 25, 1891; survey returned March 24, 1891; approved by Board of Surveyors April 6, 1891] | Mercer, Joseph | 1891 |
Blueprint
38 x 30 in.
|
Northern Passenger Railway Co. 8th to Fairhill Sts., Dauphin St. to Lehigh Ave.
Street Railway
|
| RC-011-p |
|
Plan of People's Passenger R.R. tracks on 8th and Girard Ave. [Approved by Board of Surveyors Oct. 9, 1893] | Carlile, William K. | 1893 |
Blueprint
15 x 14 in.
1 inch = 20 feet
|
Street railway tracks at 8th St. and Girard Ave.
Street Railway
|
| RC-011-q |
|
Plan of proposed extension of the Second and Third Sts. Passenger R.R. Co. | Close, Charles W. | 1890 ca. |
Blueprint
19 x 36 in.
|
Street railway tracks on 2nd St., 4th St. and Moyamensing Ave. between Wolf and Mifflin Sts.
Street Railway
|

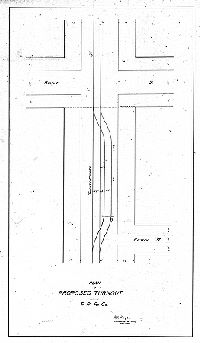

| RC-011-r |
|
Plan of proposed turnout for the P. P. Ry. Co. [Peoples Passenger Railway Co.] | Thayer, W. W. | 1892 |
Blueprint
25 x 150 in.
1 inch = 10 feet
|
People's Passenger Railway Co.
Street Railway
|
| RC-011-s |
|
Plan of proposed re-location of tracks on Callowhill St. from 4th to 7th Sts., 4th Dist. [Survey returned April 15, 1893] | Bloch, Frits | 1893 |
Blueprint
12 x 41 in.
1 Inch = 40 feet
|
Street railway tracks on Callowhill Street from 4th to 7th Sts.
Street Railway
|
| RC-011-t |
|
Plan of the re-location of tracks for the Peoples Traction Comp. 4th and Girard Ave. Philada. [Survey returned and approved Oct. 2, 1893] | Bloch, Frits | 1893 |
Blueprint
19 x 18 in.
|
Street railway tracks at intersection of 4th St. and Girard Ave.
Street Railway
|
| RC-011-u |
|
Plan of the re-location of tracks for the Peoples Traction Comp. at Fourth St. and Germantown Ave. Philada. [Survey returned and approved Oct. 2, 1893] | Bloch, Frits | 1893 |
Blueprint
25 x 19 in.
|
Street railway tracks at intersection of 4th St. and Germantown Ave.
Street Railway
|
| RC-011-v |
|
No. 23. Peoples Traction Co., Philadelphia, Pa. Germantown Ave. and 8th St. The Johnson Company, Johnstown, PA. Scale 1-4 inch -- 1 ft. July 20th 1893. Drawing Number 16778 | Not named | 1893 |
Blueprint
30 x 48 in.
1 inch = 4 feet
|
Street railway tracks at intersection of 8th St. and Germantown Ave.
Street Railway
|
| RC-011-w |
|
Section of proposed track belonging to the Peoples Passenger Railway Company [Ordinance March 23, 1889; approved by Board of Surveyors April 15, 1889] | Mercer, Joseph | 1889 |
Mounted
21 x 17 in.
|
Street railway track at Girard Ave. and Norris St.; adjacent to Aramingo Canal
Street Railway
|
| RC-011-x |
|
Plan of section of track belonging to the (Germantown) Peoples Passenger Railway Co. [Survey returned June 30, 1888; approved by Board of Surveyors July 2, 1888. This is contiguous with plan RC-011-z and RC-011-y, but by a different surveyor.] | Mercer, Joseph | 1888 |
Mounted
15 x 36 in.
|
Street railway tracks on Girard Ave. from Frankford Ave. to Palmer St.
Street Railway
|
| RC-011-y |
|
Plan and profile of proposed alteration of the position of tracks belonging to the Peoples Passenger Railway [Survey returned June 30, 1888; approved by Board of Surveyors July 2, 1888. This is contiguous with plan RC-011-z and RC-011-x, but by a different surveyor.] | French, Andrew | 1888 |
Mounted
14 x 54 in.
1 inch = 80 feet
|
Street railway tracks on Girard Ave. from Frankford Ave. to 6th St.
Street Railway
|
| RC-011-z |
|
[No title. Passenger railway tracks on Girard Ave. from Broad St. to 6th St. This is contiguous with plan RC-011-x and RC-011-y, but by a different surveyor. Approved by Board of Surveyors July 2, 1888] | Albertson, William | 1888 |
Mounted
17 x 51 in.
|
Street railway tracks on Girard Ave. from Broad St. to 6th St.
Street Railway
|
| RC-012-b |
|
Plan of the proposed extension of the 13th and 15th St. Passr. Railway on Locust St. [Survey returned and approved March 21, 1870, with attached letter] | Shedaker, David Hudson | 1870 |
Mounted
11 x 16 in.
|
13th and 15th Sts. Passenger Railway Co.
Street railway. With attached letter
|
| RC-012-c |
|
Plan showing proposed Thirteenth and Fifteenth Streets Passenger Railway on the west side of Broad Street from Wharton St. to Moyamensing Ave. [Approved Aug. 2, 1875] | Daly, Thomas | 1875 |
Mounted
11 x 67 in.
|
13th and 15th Sts. Passenger Railway. Broad St., Wharton St. to Moyamensing Ave.
Street Railway
|
| RC-012-d |
|
Plan of the Thirteenth and Fifteenth Streets Rail Way on Broad Street from Columbia Avenue to Montgomery Street | Albertson, William | 1875 ca. |
Mounted
13 x 9 in.
|
13th and 15th Sts. Passenger Railway. Broad St., Columbia Ave. to Montgomery St.
Street Railway
|
| RC-012-f |
|
Plan showing change of Thirteenth and Fifteenth Streets Railway tracks on Broad St. from Carpenter St. to Washington Ave. on account of widening the footways [Approved Dec. 7, 1874] | Shedaker, David Hudson | 1874 |
Mounted
8 x 16 in.
|
13th and 15th Sts. Passenger Railway. Broad St., Carpenter St. to Washington Ave.
Street Railway
|
| RC-012-g |
|
Plan of the Thirteenth and Fifteenth Streets Passenger Rail Way on Broad Street from Montgomery Street to the Philada. Germn'n. & Norristown Rail Road | Levering, John H. | 1875 ca. |
Mounted
13 x 68 in.
|
13th and 15th Sts. Passenger Railway. Broad St., Montgomery St. to Philadelphia, Germantown and Norristown Railroad
Street Railway
|
| RC-012-h |
|
Plan of the extension of the 13th & 15th Sts. Passenger Railway, submitted to the Board of Surveys Nov. 5th, 1877, vide act of Assembly Mar. 27th, 1873 | Not named | 1877 |
Mounted
12 x 73 in.
|
13th and 15th Sts. Passenger Railway. Broad St., Lehigh to Erie Aves.
Street Railway
|
| RC-012-i |
|
Plan and profile of the 13th and 15th Streets, and the Union Passenger Railways, on Master Street, from 15th Street to Ridge Ave. In accordance with a decree of the Court of Common Please, No. 4, Dec. Term, 1876 [Approved April 17 and Oct. 16, 1882] | Albertson, William | 1882 |
Mounted
31 x 11 in.
|
13th and 15th Sts. Passenger Railway. Master St., 15th St. to Ridge Ave.
Street Railway
|

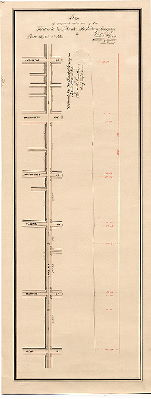

| RC-012-j |
|
Plan of the proposed extension of the Thirteenth and Fifteenth Sts. Railway Company [Approved Sept. 17, 1882] | Close, Charles W. | 1882 |
Mounted
12 x 31 in.
|
13th and 15th Sts. Passenger Railway. Master St., 15th St. to Ridge Ave.
Street Railway
|
| RC-012-k |
|
Plan of the proposed extension of the Thirteenth and Fifteenth Street. Passenger Railway Company [Approved April 21, 1879] | Close, Charles S. | 1879 |
Mounted
50 x 12 in.
|
13th and 15th Sts. Passenger Railway., between Jackson and Reed Sts.
Street Railway
|
| RC-012-L |
|
Plan and profile of the 13th and 15th Streets Passenger Railways, on Fifteenth St. from Columbia Ave. to Cumberland St., and on Norris St. and Dauphin St. from Broad St. to Fifteenth St. In accordance with an Act of Assembly, approved April 4th, 1868. P.L., page 640. [Approved Aug. 7, 1882] | Not named | 1882 |
Mounted
58 x 13 in.
|
13th and 15th Sts. Passenger Railway.
Street Railway
|
| RC-012-m |
|
Plan of the proposed extension of the 13th & 15th St. P.R.W. [Approved Feb 16, and March 6, 1885] | Daly, Thomas | 1885 |
Mounted
15 x 40 in.
|
13th and 15th Sts. Passenger Railway. Bounded by Broad to 15th Sts., Dickinson to Carpenter Sts.
Street Railway
|

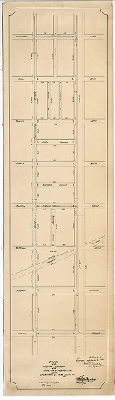

| RC-012-n |
|
Plan of the proposed extension of the 13th & 15th St. Passenger R.W. [Approved Sept. 6, 1886] | Daly, Thomas | 1886 |
Mounted
53 x 15 in.
|
13th and 15th Sts. Passenger Railway. Bounded by Broad to 15th Sts., Morris to Jackson Sts.
Street Railway
|
| RC-012-p |
|

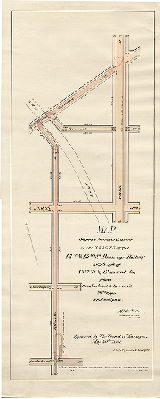

Plan showing proposed extension of the tracks of the 13th & 15th St. Passenger Railway on the line of 15th St. and Glenwood Ave. from Cumberland to Broad Sts., 28th Ward, Philadelphia [Approved May 20, 1889] | Fuller, H. M. | 1889 |
Mounted
30 x 121 in.
|
13th and 15th Sts. Passenger Railway.
Street Railway
|
| RC-012-q |
|
Plan of the proposed extension of the tracks of the 13th & 15th St. Passenger Railway Co. on the line of 13th and Cambria Sts. from 13th and Cumberland St. to Broad and Cambria Sts., 28th Ward, Philadelphia [Approved May 20, 1889] | Fuller, H. M. | 1890 |
Mounted
30 x 121 in.
|
13th and 15th Sts. Passenger Railway.
Street Railway
|
